How Automatic Transfer Switches Work with Diesel Generators

A diesel generator is one of the most reliable sources of backup power, ensuring your home or business continues to operate during power outages. However, what truly makes this system efficient and seamless is the Automatic Transfer Switch (ATS). The ATS acts as the intelligent middleman between your generator and the main electrical grid, automatically detecting power loss and switching the supply to your diesel generator without manual intervention.

In this article, we’ll explore how automatic transfer switches work with diesel generators, their importance, and the step-by-step process that makes them indispensable for reliable power continuity.

What Is an Automatic Transfer Switch (ATS)?

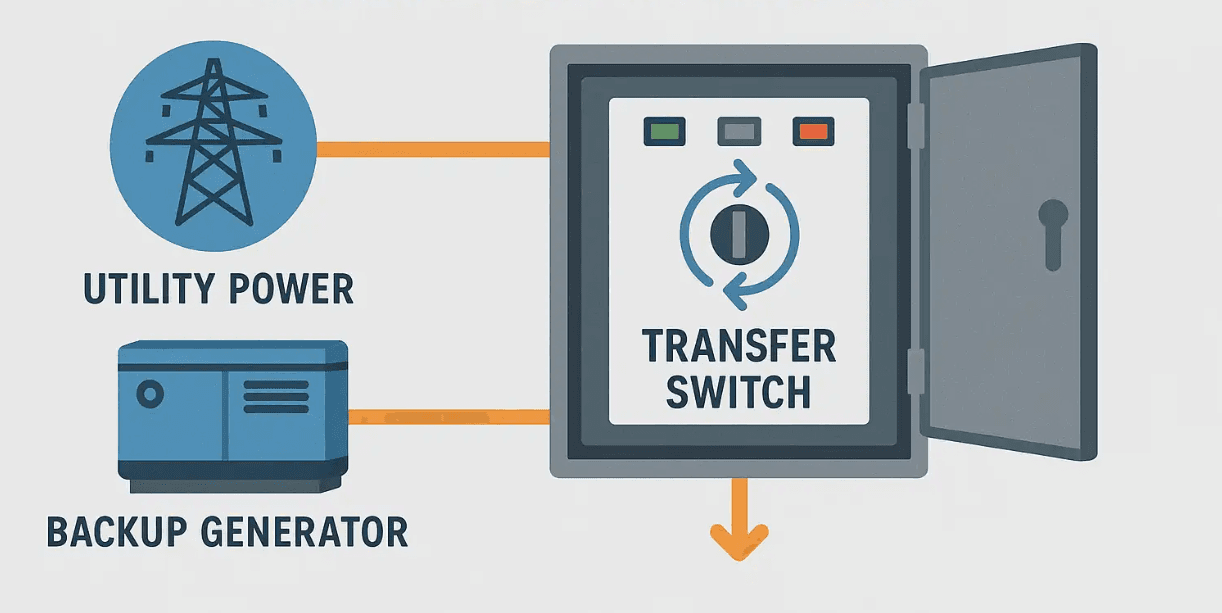

An Automatic Transfer Switch (ATS) is an electrical device that automatically transfers a power load from the utility source to a backup generator when it detects a power failure. Once the main utility power is restored, the ATS safely switches the load back to the primary power source and shuts down the generator.

Essentially, the ATS acts as the brain of your power system, managing the transition between utility power and generator power with precision and safety. It eliminates the need for manual switching and ensures that your systems continue running with minimal interruption.

Why an ATS Is Essential for Diesel Generators

Diesel generators provide reliable backup power, but without an ATS, the transition from utility to generator power can be delayed or hazardous. The ATS ensures:

1. Seamless Power Supply – Automatically switches to generator power within seconds of an outage.

2. Safety and Protection – Prevents backfeeding, which can damage equipment or endanger utility workers.

3. Efficiency – Reduces downtime and maintains the operation of essential appliances or systems.

4. Convenience – No need for manual intervention, especially during storms or sudden blackouts.

In commercial facilities like hospitals, data centers, and factories, the ATS is not just a convenience—it’s a critical safety component that ensures continuous power for essential operations.

How an ATS Works with a Diesel Generator (Step-by-Step)

Let’s break down how the automatic transfer switch operates with a diesel generator in real-time:

Step 1: Monitoring the Power Supply

The ATS constantly monitors the incoming voltage from the utility line. It checks for voltage drops, frequency inconsistencies, or total power loss.

Step 2: Detecting an Outage

When the ATS detects that the utility power has failed or dropped below acceptable levels, it immediately sends a start signal to the diesel generator.

Step 3: Starting the Diesel Generator

Once the generator receives the signal, it automatically starts up. Within a few seconds, the generator reaches the proper voltage and frequency required for stable power output.

Step 4: Transferring the Load

After confirming that the generator is producing stable power, the ATS disconnects the utility line and transfers the electrical load to the generator. This ensures that your home or facility continues to receive electricity smoothly.

Step 5: Continuous Operation

The generator continues to power the load for as long as the utility supply remains unavailable. The ATS keeps monitoring the utility line throughout this time.

Step 6: Switching Back to Utility Power

Once the ATS senses that the utility power has been restored and is stable, it switches the load back to the main grid. It then sends a stop signal to the generator, allowing it to cool down and shut off automatically.

This entire process happens within seconds, minimizing disruptions and maintaining a steady power supply.

Types of Automatic Transfer Switches

There are two main types of ATS used with diesel generators:

1. Open Transition (Break-Before-Make)

   • The load is disconnected from one power source before connecting to the other.

   • Common for residential or small commercial setups.

2. Closed Transition (Make-Before-Break)

   • Both power sources are momentarily connected to allow a seamless transition without interruption.

   • Ideal for critical facilities like hospitals or data centers.

Maintenance Tips for ATS and Diesel Generators

To ensure the ATS and generator work efficiently together:

• Test the system monthly to verify automatic switching.

• Check connections for corrosion or wear.

• Inspect control panels and sensors regularly.

• Perform routine generator maintenance, including oil, fuel, and filter checks.

Regular testing ensures that the ATS will perform flawlessly when a power failure occurs.

Final Thoughts

An Automatic Transfer Switch (ATS) is the key to making a diesel generator truly automatic and reliable. It ensures that power transitions happen smoothly, safely, and without manual interference—keeping your essential systems running no matter what.

Whether you’re protecting a business, home, or industrial facility, investing in a quality ATS setup and maintaining it properly guarantees continuous power and peace of mind during outages.
